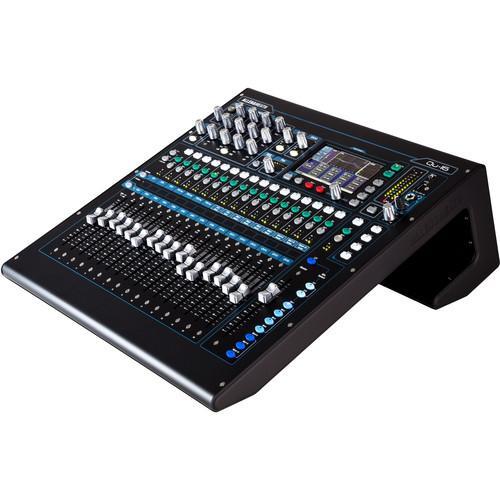

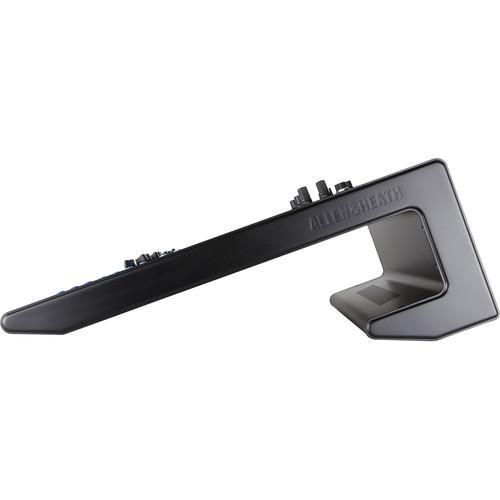

Allen & Heath Qu-16C Rackmountable Digital Mixer (Chrome Edition)

The chrome edition of the Allen & Heath Qu-16C Rackmountable Digital Mixer is a 16-channel digital mixer and USB audio interface designed for live and installed sound as well as studio use. The chrome edition adds high-contrast chrome rotary and fader knobs that improve visibility in dark conditions, as well as a number of software enhancements from the updated firmware (V1.8). It features 16 mic- or line-selectable inputs and 3 stereo line inputs. Its 16 anaLOGIQ microphone preamps have digitally recallable settings that can be saved and recalled for future sessions. The Qu-16 has a variety of output options, including 4 mono XLR mix outputs, 3 XLR stereo-pair mix outputs, an alternative TRS stereo-pair mix output, a TRS stereo-pair 2-track output, and a 2-channel AES digital output.

The Qu-16 has 16 buses as well as 4 stereo effects returns, and offers a variety of routing options and controls. It has a 5" 800x480 resolution touchscreen that displays your metering and RTA views, effects tracks, processing, routing, and saved scenes. The 16 tracks are controllable with the 16 100mm motorized faders. Built-in processing allows you to EQ, compress, gate, switch polarity, and apply delay to all 16 tracks. All of your settings can be saved as a scene and recalled later for quick setup.

Thanks to its internal convertors, the Qu-16 is also a USB audio interface and can record to any Core Audio-compatible software on your Mac. You can also record to and play back audio from an external USB hard drive. It is compatible with the Qu-Pad iPad app that allows you to control your mix with your iPad over a connected wireless network. The Qu-16 unit itself can be rackmounted or set up on a desk.

16 Mono Inputs (TRS + XLR)
- 3 Stereo Inputs (TRS)
- 4 Stereo FX Returns
- 16 Busses
- 12 Mix Outputs (LR, Mono Mix 1-4, Stereo Mix 1-3)
- 4 FX Engines
- AES Digital Out
- 19" Rack Mountable
- Moving Faders
- Recallable Analog IQ Preamps
- Qu-Drive direct Multitrack Recording / Playback on USB drives
- 800x480 Touchscreen
- iLive FX Library
- dSNAKE Remote Audio Port
- Automatic Mic Mixer
- Compatible with ME Personal Mixing System
- Qu-Pad iPad App
- Qu-You iPhone / Android personal monitoring app
- USB Audio Streaming
- DAW MIDI Control
- 4 Mute Groups
- 4 DCA Groups
- Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor and delay on all Inputs
- Insert, 1/3 octave GEQ, compressor and delay on Main LR and Mono Mix outputs
- Insert, 4-band PEQ, compressor and delay on Stereo Mix outputs
- Built-in Signal Generator
- RTA with Peak Band indication
- Spectrogram to aid with feedback elimination and taming room acoustics
- High contrast metallic finish controls, matching premium GLD Chrome series
