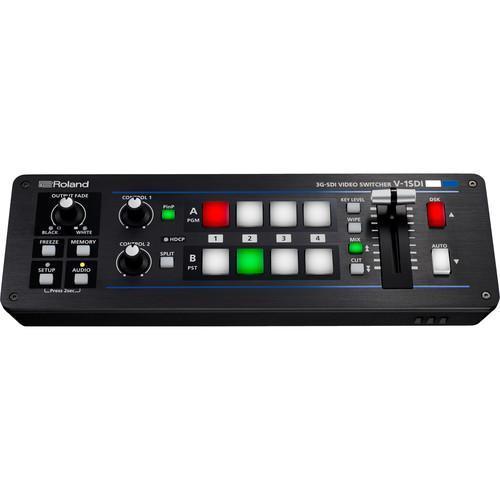

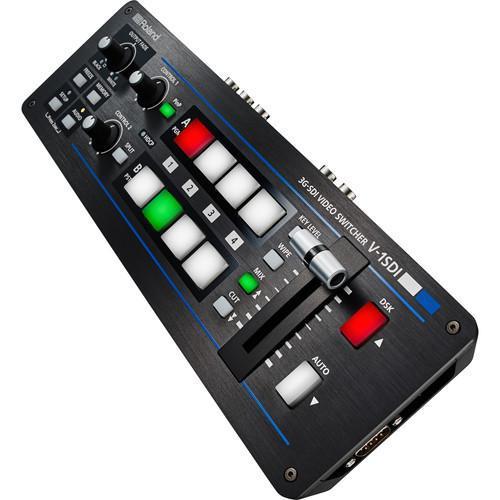

Roland V-1SDI 4-Channel HD Video Switcher

This fine switcher ships direct from Roland and is typically not in stock at the Smyrna store.  Choose free shipping at checkout for delivery in 2-5 business days.

Roland's V-1SDI 4-Channel HD Video Switcher supports HD-only video signals over three of its inputs, and can support SD, HD, and computer video formats up to 1920 x 1200 (WUXGA) at 60 Hz on its fourth. It supports progressive and interlaced material, internally converting the interlaced footage to progressive for processing. Featuring a preview, program, and multiview output, you can easily monitor all your inputs at once on the multiview while isolating your preview and program screens.

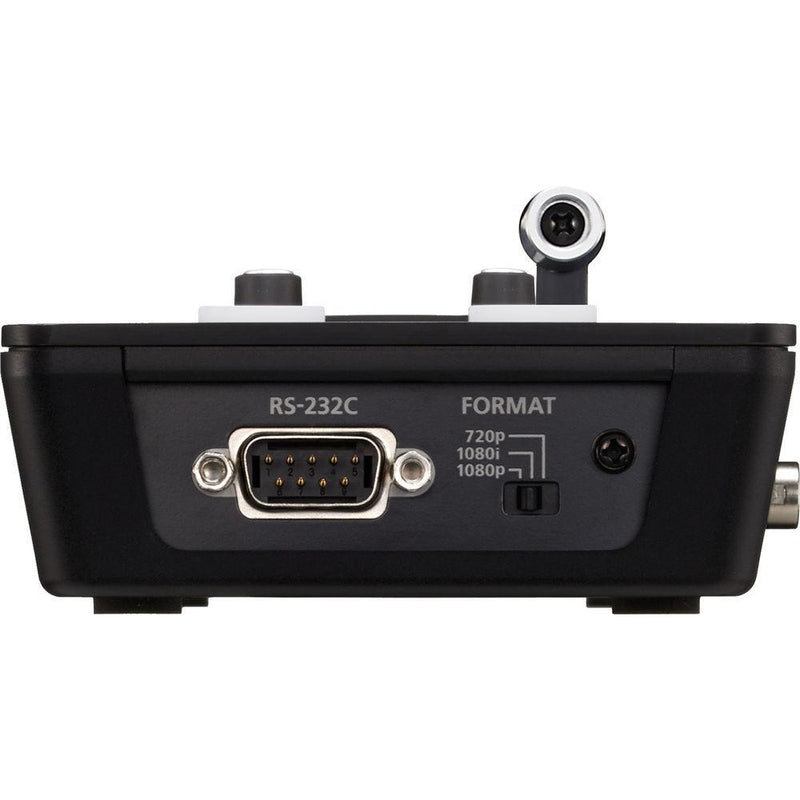

The HDMI inputs and multiview output are HDCP compliant, while the SDI inputs and SDI preview and program outputs support SMPTE 424M (SMPTE 425M-AB), 292M, and 259M-C. You can control the unit via the built-in RS-232 port, or via a PC using the USB connection. Eight memory functions enable you to recall specific setups, which makes it easier to get up and running when the switcher is shared among different productions. Built-in features include image freeze and output fades.

Key Features

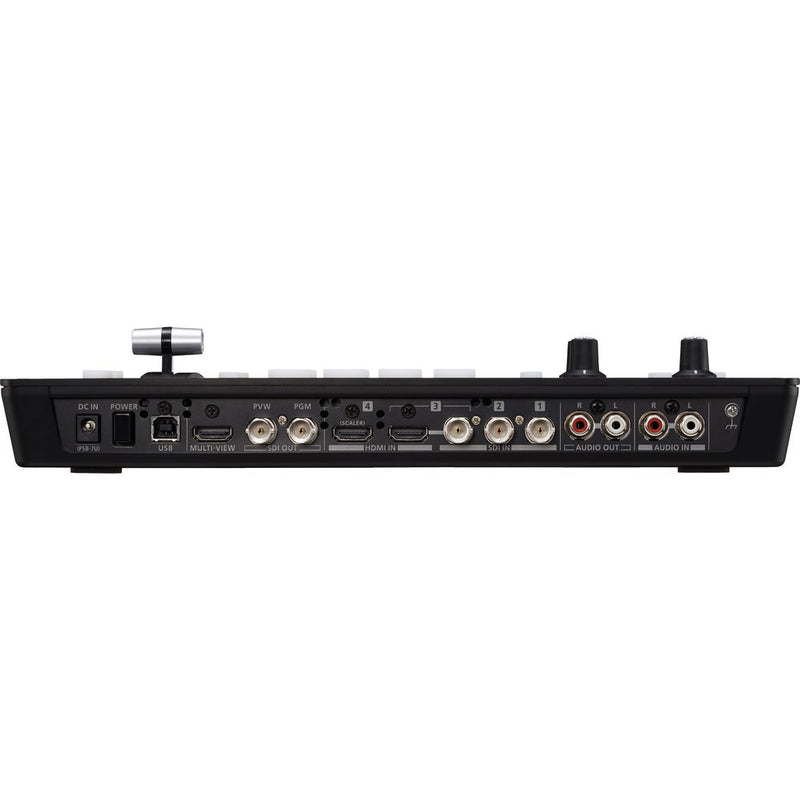

• 3 x SDI Inputs, 2 x HDMI Inputs
• Internal I to P Processing
• Multiview HDMI Output
• HDCP Compliant

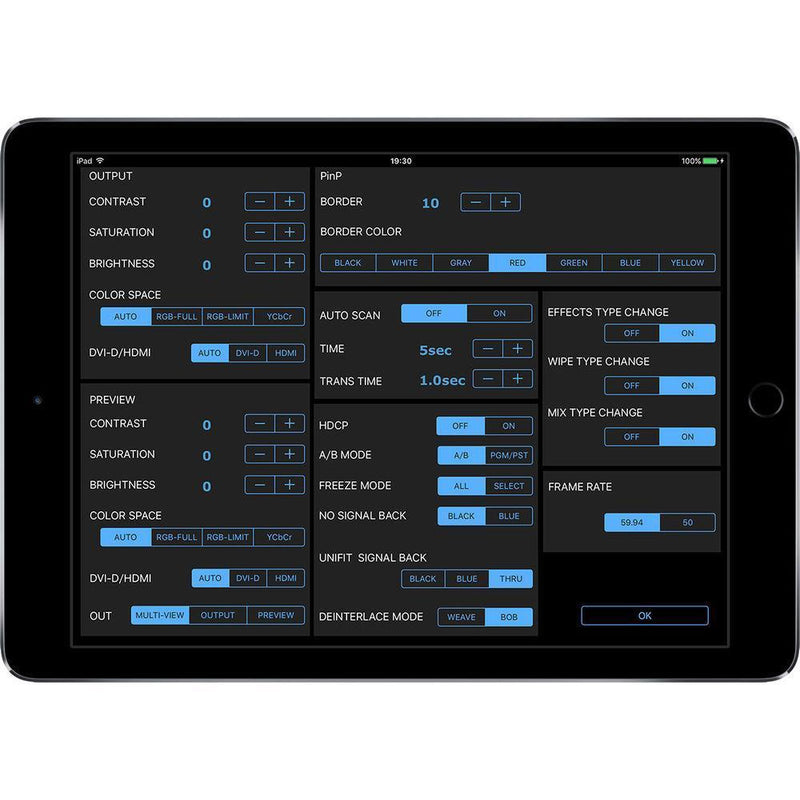

• USB and RS-232 Remote Control Ports
• Eight Memory Functions
• Freeze Input, and Output Fades
